Is My Outlook 2010 / 2013 Configured Correctly?

This article will walk you through all the setting for Outlook 2010/2013 so you can check your existing account if configured correctly. If you are setting up accounts for the first time, you should see this article which uses auth-configuration.

To view you existing settings Open Microsoft Outlook 2010, then click on File -> Info -> Account Settings -> and select account settings from the box that appears.

Outlook 2010 menu

A new account settings page will load. Double click on the email address you want to check settings on.

Outlook 2010 Account Setting select mail account

The incoming mail server should be and the outgoing mail server should be

TIP:  Your email address is usually the same as your User Name. You can also verify your account password with our webmail facility at DDNS. If you can login to the account with your email address and password then you definitely have the correct details.

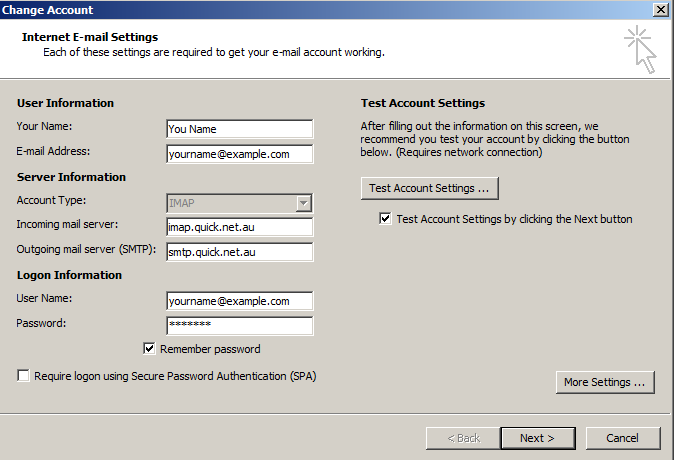

Outlook 2010 Email Account Settings

Click more settings... in the lower right, and click on the Outgoing Server tab. The settings should be as per the image below, with my outgoing server (SMTP) requires authentication ticked and the bullet in the first option, use same settings as my incoming mail server.

Outlook 2007 outgoing mail server

Next, click on the Advanced tab and select SSL from the two drop down boxes labelled 'use the following type of encrypted connection'. Just below you will see a box labelled Outgoing mail server (SMTP): with 25 in the box, change this number to 465. When done, it should look like the screenshot below.

IMAP Only: If you selected the account type as IMAP, down the bottom of the page you will see a box labelled Root folder path type in Inbox as per the screenshot below. This will ensure all your special folders appear in the correct location in the outlook folder tree. If you are using POP or POP3, this step isn't relevant.

Outlook 2010 advanced

Notes: You don't have to select the number for the incoming mail server as outlook will figure it out correctly for itself once you select SSL.  However if you want to re-assure yourself, it will be either 993 or 995 depending on your account type. If the incoming mail server is not 993 or 995, then you most likely have not enabled/selected SSL for the incoming mail server.

The Root folder path only appears if you have chosen to set the account type up as IMAP.

Click OK when done and test the account settings. Provided you have the correct email address and password, your account should both send and receive in a few seconds and the process is complete.
